Network Manager Setup

Network Manager Setup

We will first create a Global Network, which acts as a container for all the objects within your network (Transit Gateways, Sites, Devices, etc). Some of these objects already exist (Transit Gateway) whereas other objets will be created in the next section of the lab (Sites, Devices…)

Access to VPC

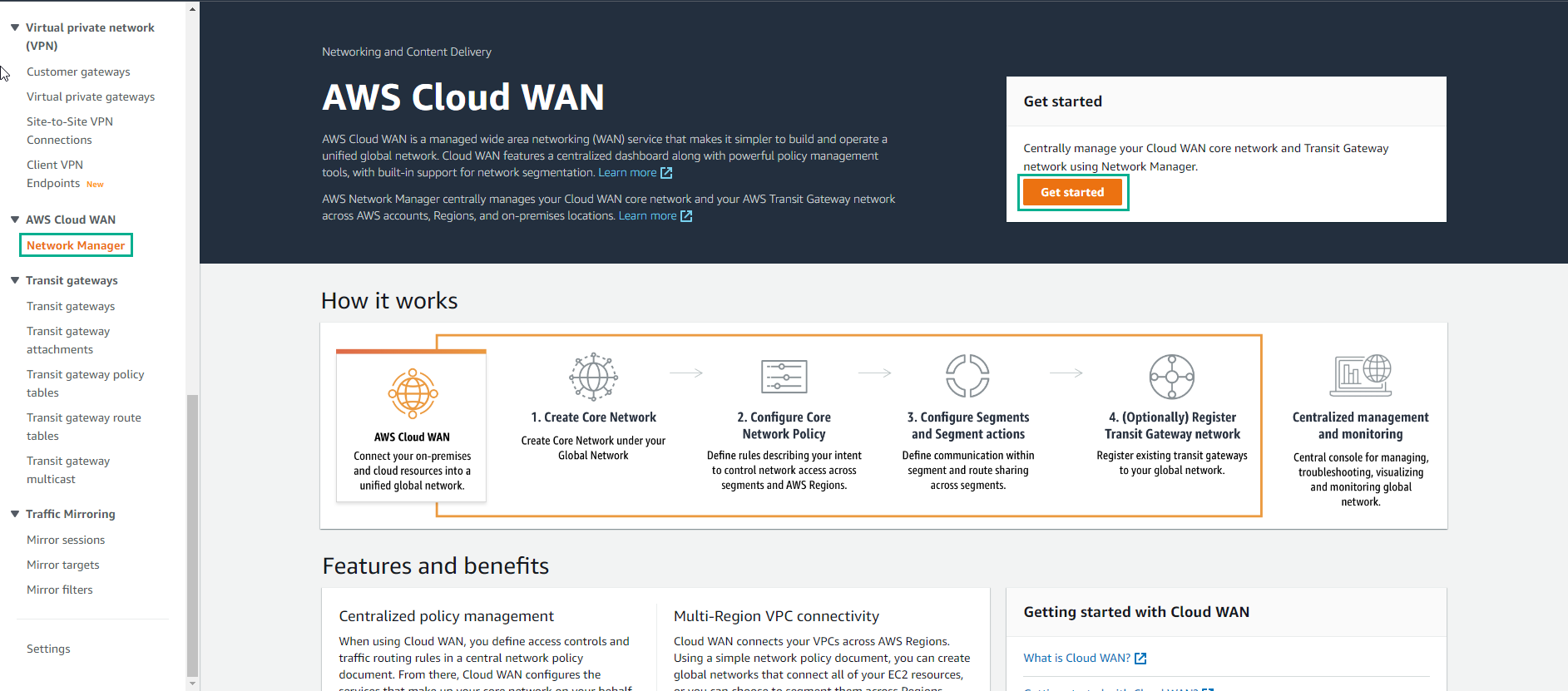

Select Network Manager

Select Get started

In the Network Manager interface

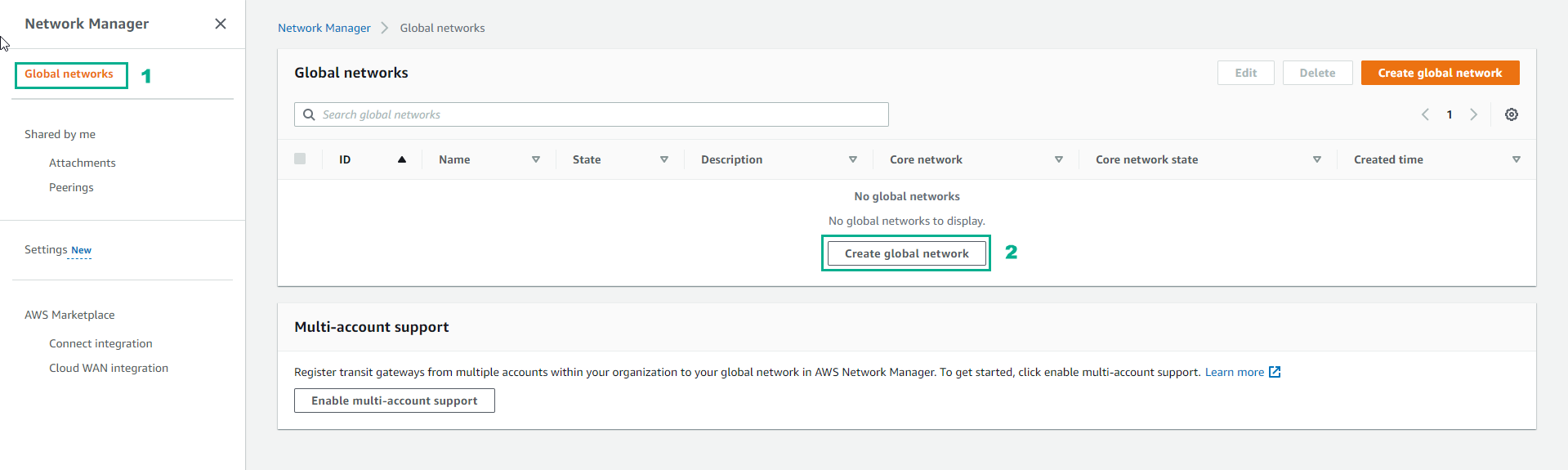

Select Global networks

Select Create global network

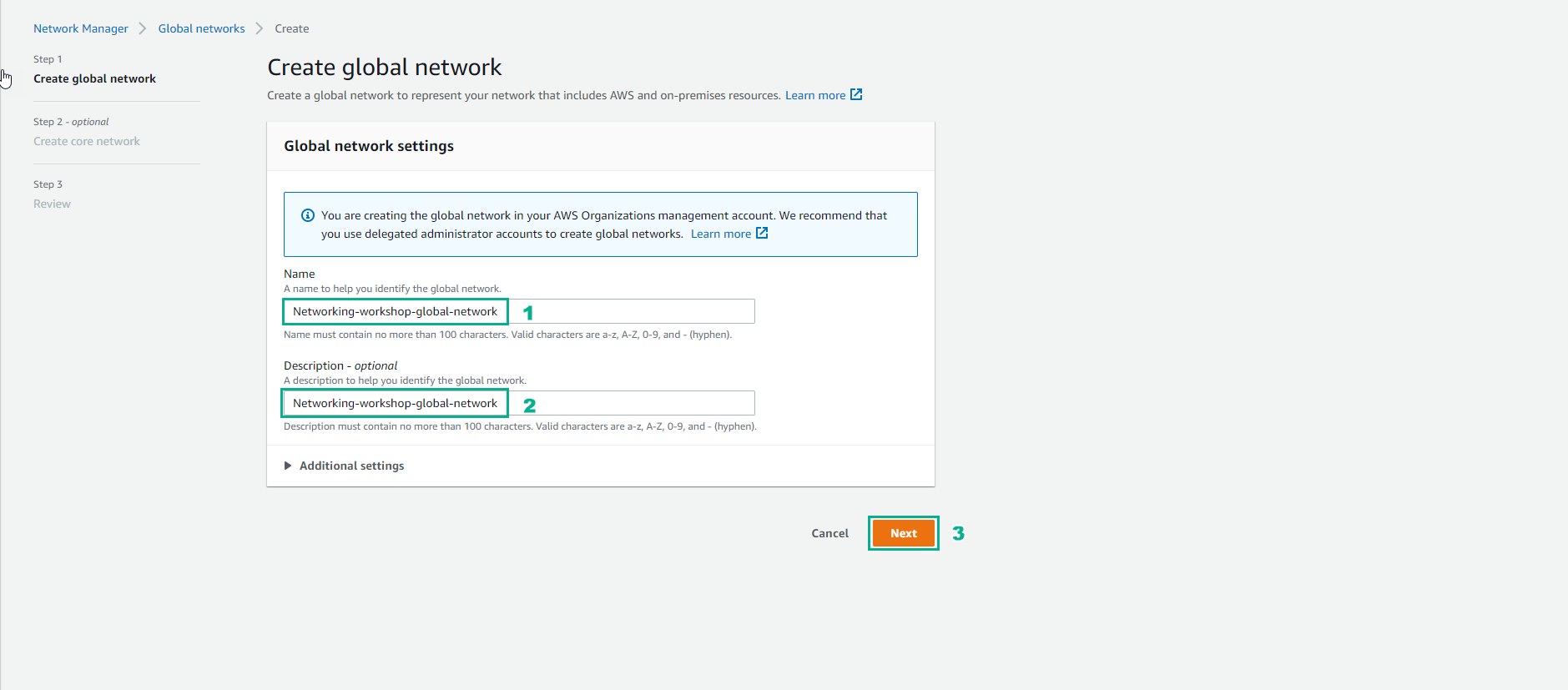

In the Create global network interface

Enter Name

Enter Description

Select Next

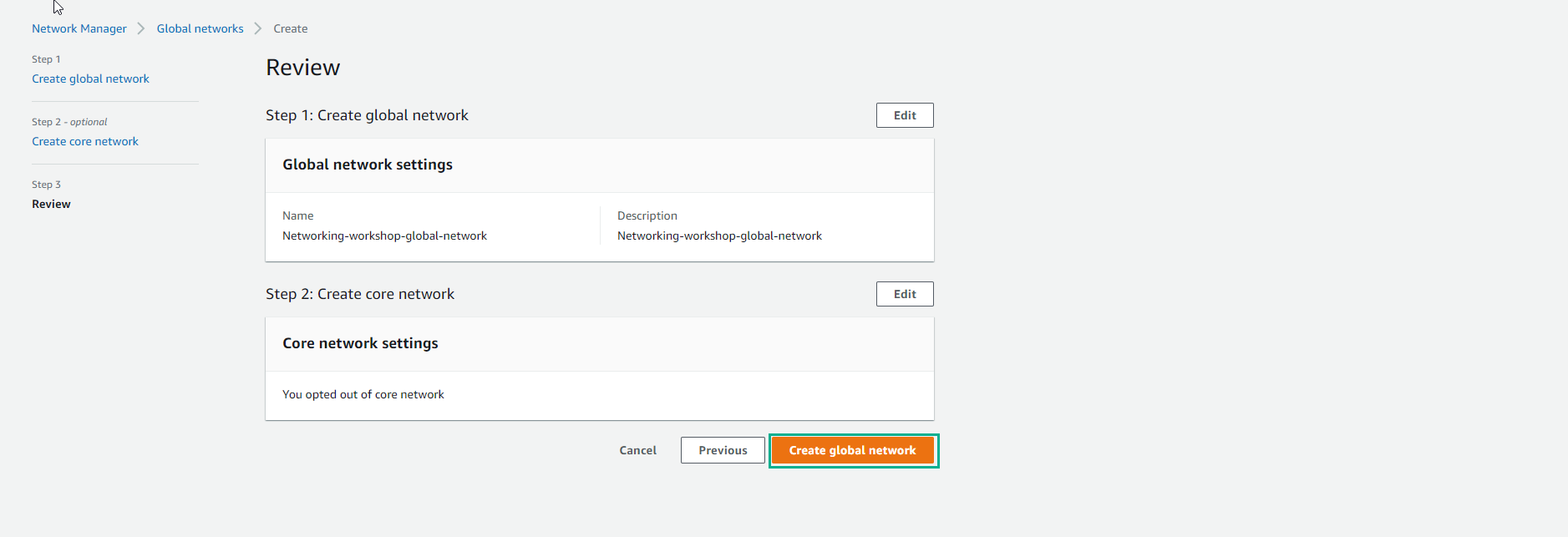

Select Create global network

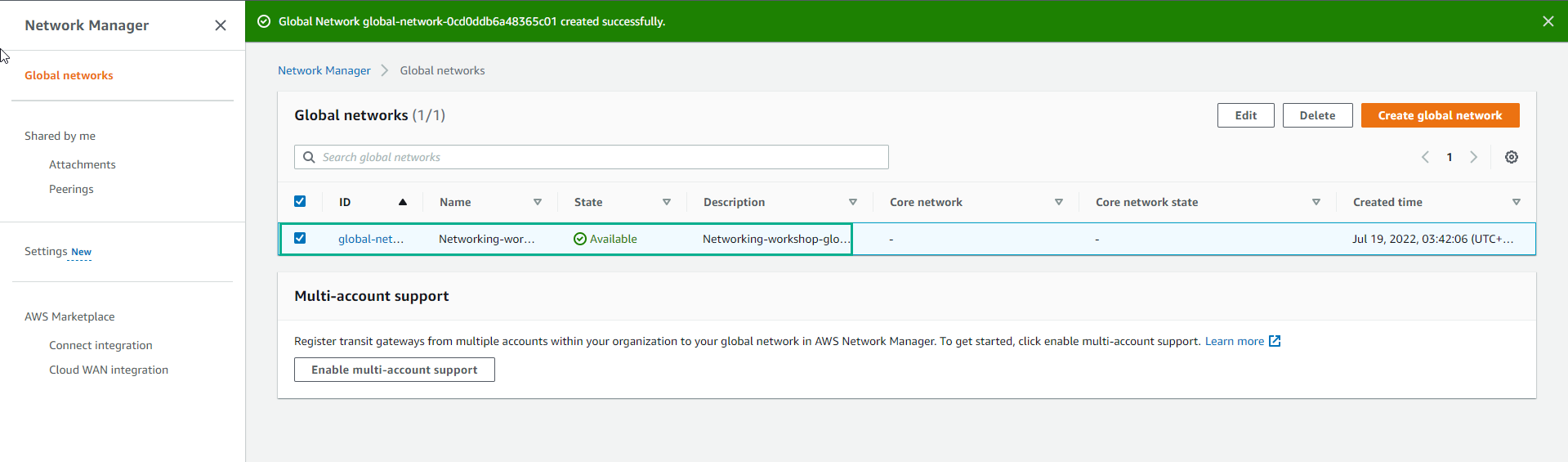

Create Global networks successfully.

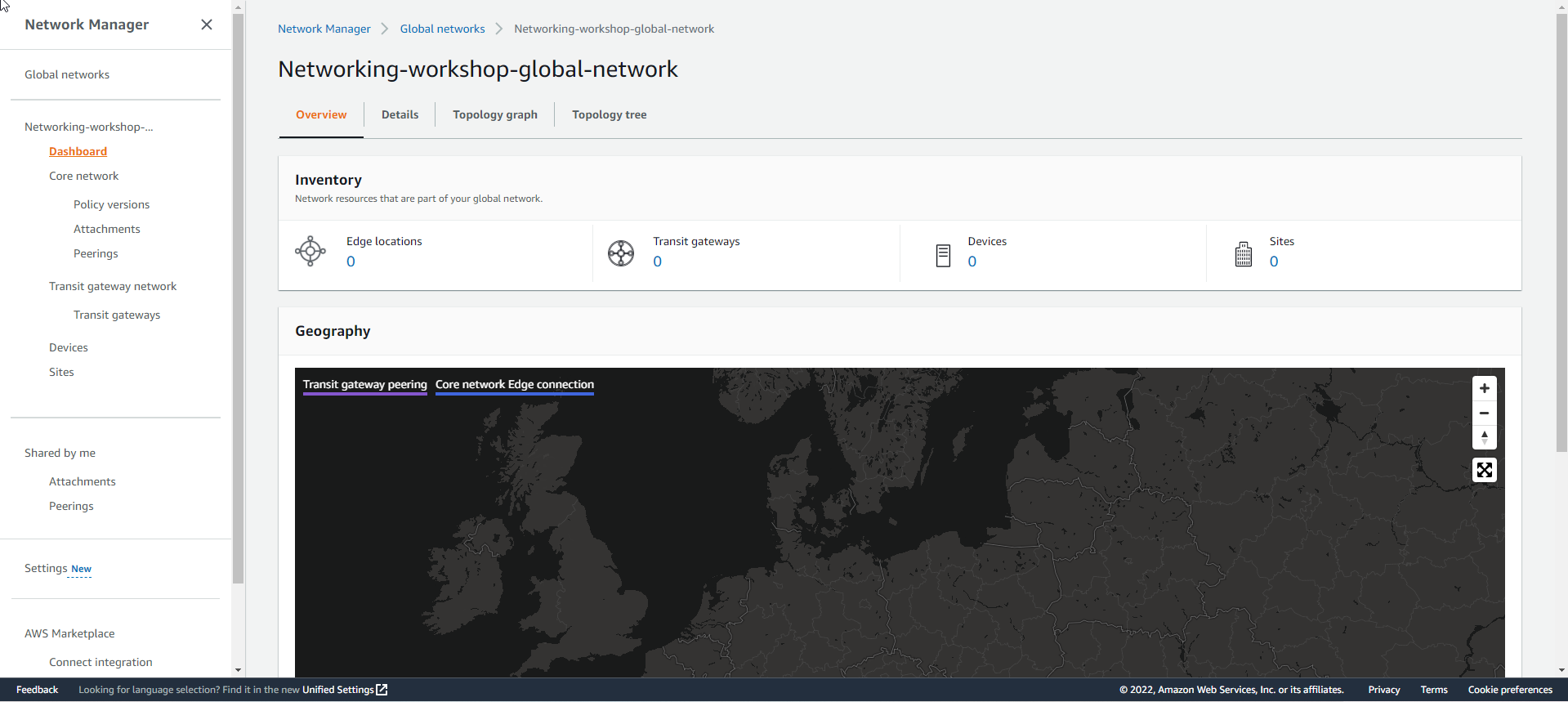

Go to Dashboard and there are currently no resources available.

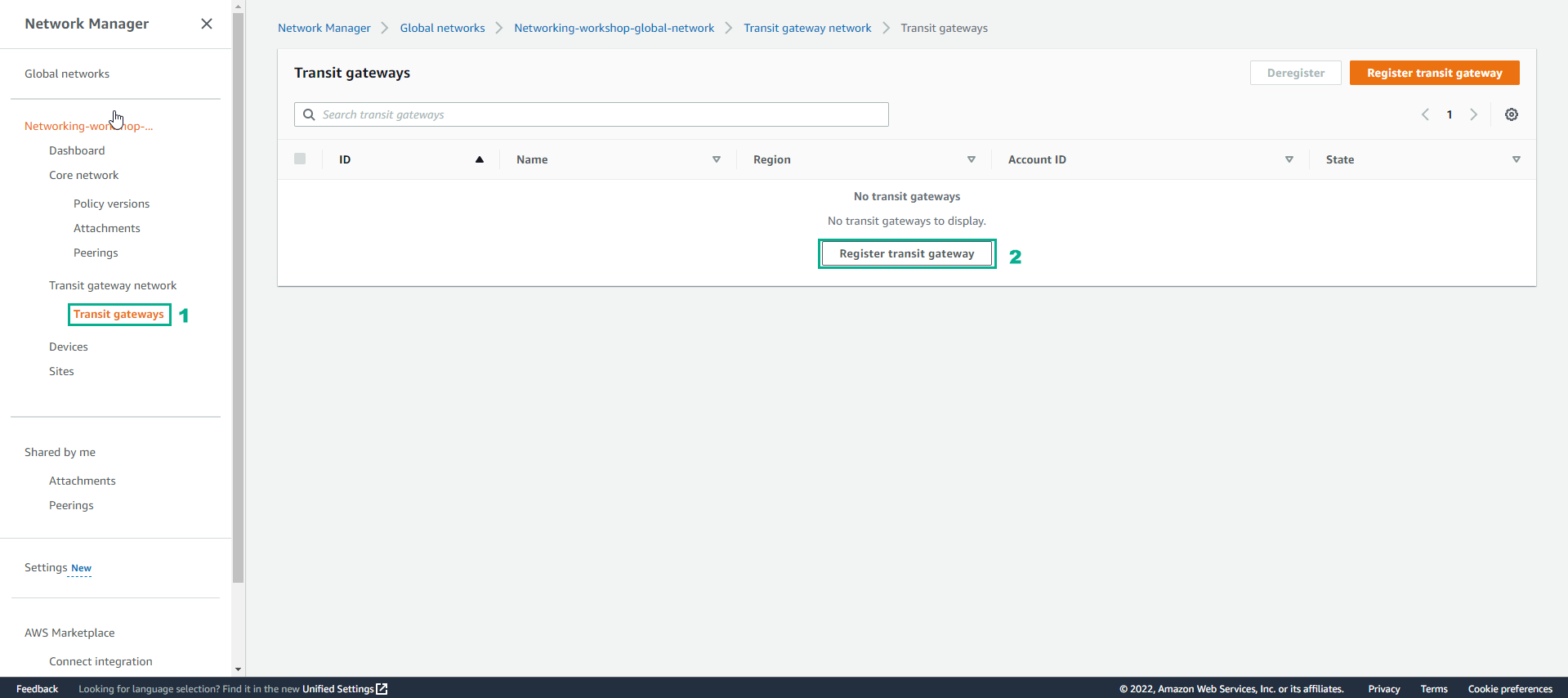

Select Transit gateways. Then select Register transit gateway

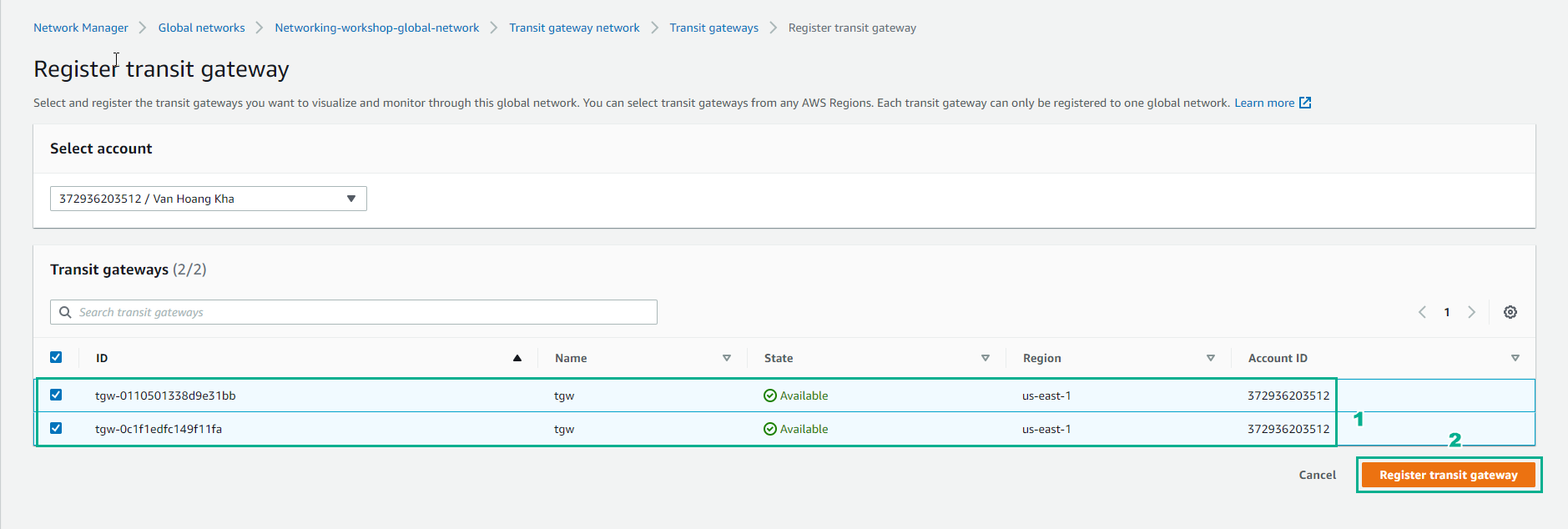

In the Register transit gateway interface

Select Account

Select transit gateways

Select Register transit gateway

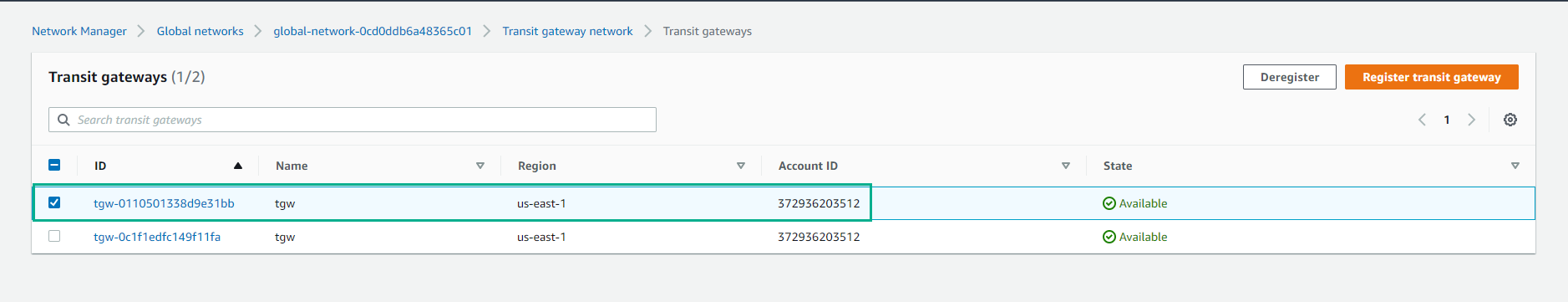

Complete Register transit gateway

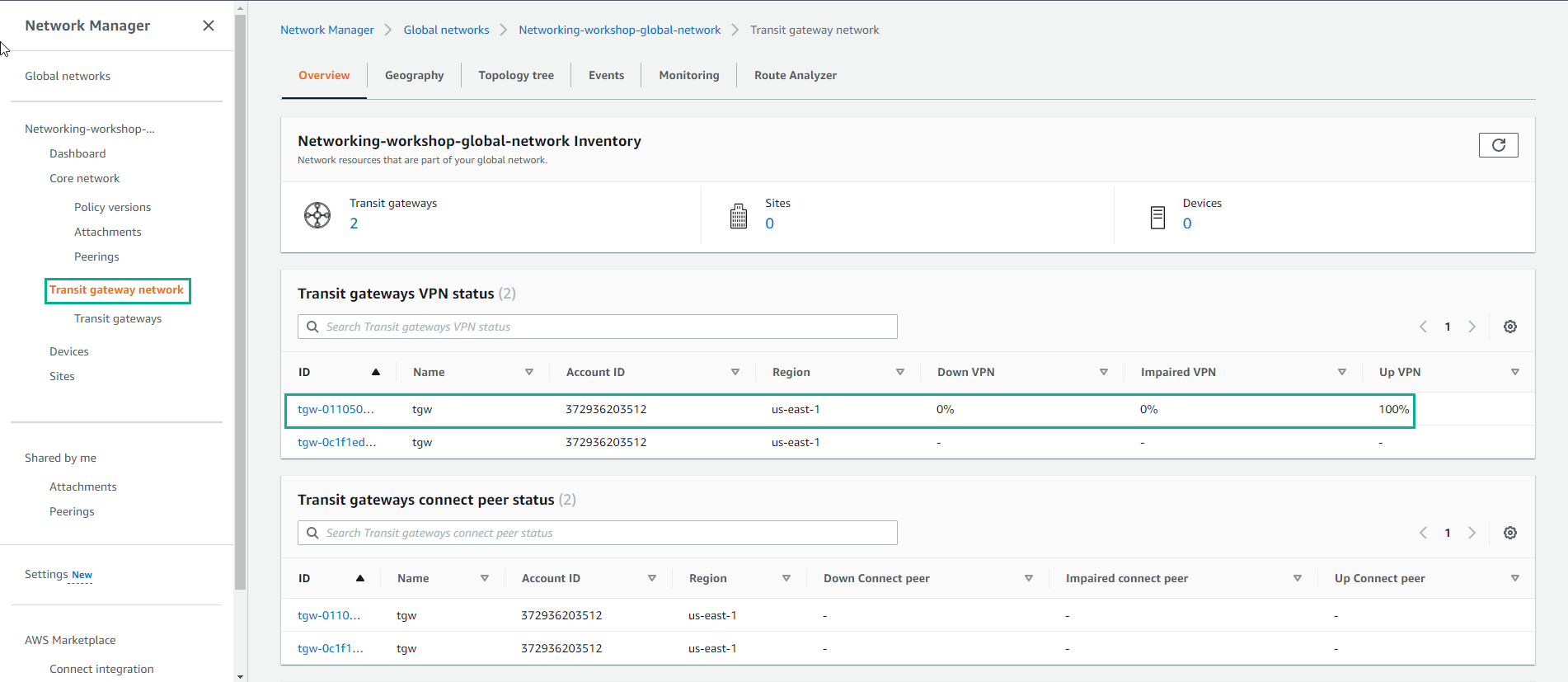

Then select Transit gateway network

Select Overview

Observe will see 2 Transit gateways

Transit gateways VPN status now UP VPN 100%.
